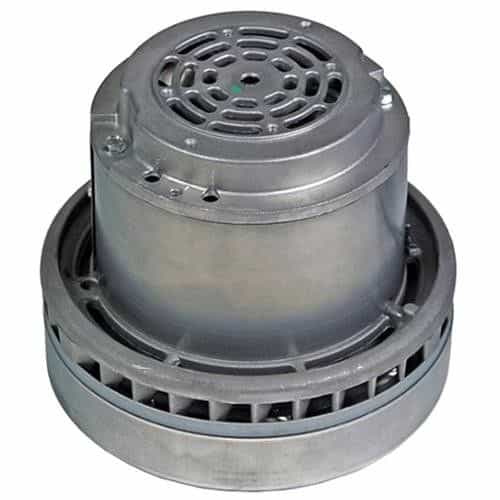

Lamb Ametek 116118-00 Peripheral Bypass Discharge Vacuum Motor - 7.2 In, 3 Stage, 1 Speed, 120V

Brand:
Ametek
Mfr. Model #:
116118-00
KR Part #:
VAL6118
Weight:
9.30 lbs
MSRP
$533.16
Now Only!
$389.85
starstarstarstarstar (0)
For use with equipment operating in environments requiring separation of working air from ventilating air. Designed to handle lean, dry, filtered air only. Utilizes a peripheral discharge system.
More Info...
Drop Ship Icon

DROP SHIP

Technical Specifications

CFM: 105
Amps: 10
Voltage AC: 120
RPM: 19450
Watts: 447

Product Description

Electric 3 Stage Motor

A motor featuring a tangential bypass discharge system. Utilizes double ball bearings. Used for equipment operating in environments requiring separation of working air from motor ventilating air. Engineered for handling clean, dry, filtered air only.

Features:
  • Two stage
  • 7.2" / 183 mm diameter
  • Double ball bearings
  • Single speed
  • Peripheral bypass discharge
  • Aluminum fan end bracket
  • Aluminum commutator bracket
  • 10 mm shaft and bearing system
  •  Epoxy painted fan case
  • UL recognized PRGY2 (E47185)
  • CL certified, class 1611 01 (LR31393)

Specifications:
  • Sealed Vacuum: 131.4 inches
  • Maximum Air Watts: 447
  • Maximum Air Flow: 105 CFM
  • Motor Speed: 19,450 RPM
  • Voltage: 120VAC
  • Max Amps: 10A
