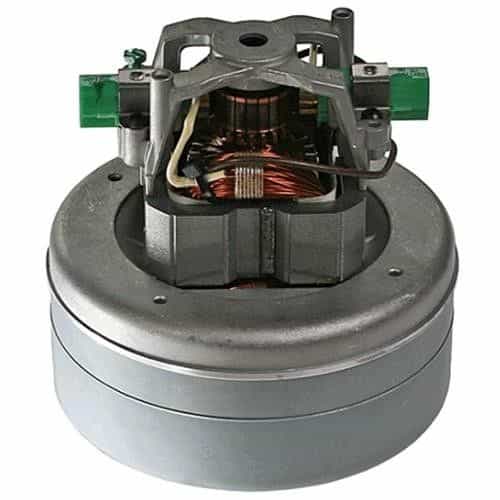

Ametek 116311-01 Two Stage Peripheral Bypass Vacuum Motor - 120 Volt, 5.7 Inch, 18,390 RPM

Brand:
Ametek
Mfr. Model #:
116311-01
KR Part #:
VAL6311
Weight:
5.29 lbs
Availability:
3
Low Stock Warning
MSRP
$182.93
Now Only!
$117.26
starstarstarstarstar (0)
A two-stage motor with a peripheral bypass system. Motor size is 5.7 inches. Operates using 120-Volt power connections.
More Info...

Technical Specifications

RPM: 18,390
Voltage AC: 120

Product Description

Thru Flow Motor

Ametek 116311-01 is a vacuum motor with a 2-stage thru flow peripheral bypass design. Compatible with 120-Volt electrical connections. Motor measures 5.7 inches. This motor runs at a maximum speed of 18,390 RPM. Features double ball bearings.

Specifications:

  • Motor Type: Thru Flow
  • Discharge: Peripheral
  • Bearings: Double Ball Bearing
  • Sealed Vacuum: 91.2 inches
  • Maximum Air Watts: 245
  • Maximum Air Flow: 95 CFM
  • Maximum Amps: 8.3
  • Motor Speed: 18,390 RPM
