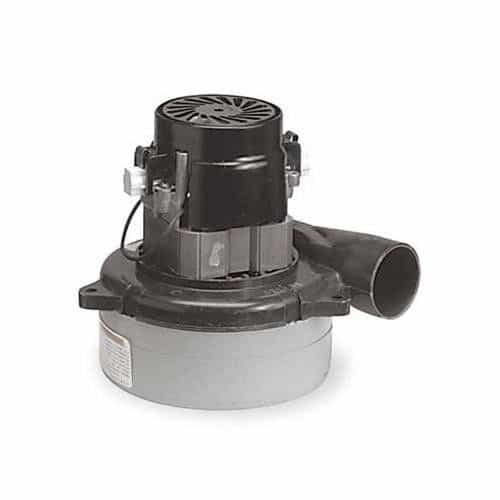

Ametek 116472-13 Tangential Bypass Vacuum Motor - 2 Stage, 120 Volt, 5.7 Inch
Brand:
Mfr. Model #:
116472-13
KR Part #:
VAL6472-13
Weight:
5.80 lbs
(0)A new 5.7" motor for vacuums. Designed with a tangential discharge system. Handles a maximum speed of 20350 RPM.
Technical Specifications
RPM: 20350
Voltage AC: 120
Product Description
2 Stage Vacuum Motor
The Ametek 116472-13 is a replacement 2 stage motor for vacuums at car washes. It features a tangential discharge and a bypass design. Motor size measures 5.7 inches. The maximum speed sustained is 20,350 RPM. It is compatible with 120 volt electrical connections.Specifications:
- Motor Type: Bypass
- Discharge: Tangential
- Bearings: Double Ball Bearing
- Sealed Vacuum: 106.7 inches
- Maximum Air Watts: 404
- Maximum Air Flow: 112 CFM
- Maximum Amps: 11.7
- Motor Speed: 20,350 RPM
- Voltage: 120 Volts
