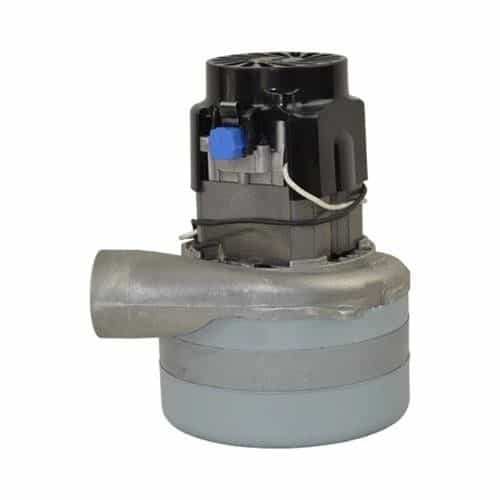

Ametek 116765-00 Tangential Bypass Vacuum Motor - 3 Stage, 5.7 Inch, 120 Volt, 17,700 RPM
Brand:
Mfr. Model #:
116765-00
KR Part #:
VAL6765
Weight:
10.63 lbs
GTIN:
814338021978
(0)A new motor for vacuums that require a 120 volt, 5.7 inch, and 3 stage motor. Designed with a tangential discharge system. Handles a maximum speed of 17,700 RPM.
Technical Specifications
Voltage AC: 120
RPM: 17700
Amps: 13.1
Product Description
3 Stage Vacuum Motor
The Ametek 116765-00 is a 3 stage bypass type vacuum motor for car wash vacuums. Its size profile measures 5.7 inches. Features a tangential discharge system. Motor tolerates a maximum speed of 17,700 RPM. Compatible with 120 volt electrical connections.Specifications:
- Motor Type: Bypass
- Discharge: Tangential
- Bearings: Double Ball Bearing
- Sealed Vacuum: 136 inches
- Maximum Air Watts: 368
- Maximum Air Flow: 95.3 CFM
- Maximum Amps: 13.1
- Motor Speed: 17,700 RPM
- Size: 5.7 Inch
- Stages: 3
- Voltage: 120
- Weight: 10.63 lbs.
- GTIN: 814338021978
