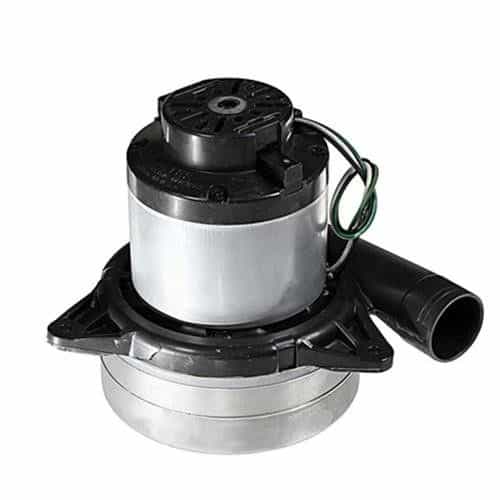

Lamb Ametek 117488-13 Tangential Bypass Vacuum Motor - Reverse Flow Cooling Fan 2 Stage, 23,613 RPM, 120 VAC
Brand:
Mfr. Model #:
117488-13
KR Part #:
VAL7488
Weight:
10.13 lbs
Manuals
(0)This is a 2-stage motor with tangential air expulsion system. Features a reverse cooling fan. Compatible with 120-Volt AC power. Note: Cooling fan has a reversed flow. Only handles clean, dry, filtered air.
Product Description
Tangential Motor
This is a 2-stage vacuum motor with double ball bearings and operates at a single speed. The motor reaches speeds of 23,613 RPM. Suitable for 120-Volt power. Features a tangential air discharge system.
Specifications:
- Special Feature: Reverse Flow Cooling Fan
- Motor Type: Series Universal
- Input Voltage: 120 VAC
- Frequency: 50/60 Hz
- Fan Diameter: 7.2 in.
- No. Fan Stages: 2
- Fan System Style: Bypass
- Air Discharge: Tangential
- Operating Temp: 32-104°F
- Bearing System: Ball/Ball
- Frame: Skeleton
- Brush Type: Carbon
- Inlet Tube Dia.: None
- RFI Choke: None
- Speed: 1
- Regulatory: UL Recognized, CSA certified
- Comm Bracket: Plastic
- Fan Bracket: Plastic
- Therm Protect: None
- Insulation Class: Class A
- Added Bearing Prot.: Air Seal
- Fan Shell Coat: Epoxy
- Electrical Conn.: Lead Wires
- Duty Cycle: Intermittent
Features:
- Two stage
- 120 volts
- 7.2"/183 mm diameter
- Double ball bearings
- Single speed
- Tangential bypass discharge
- Thermoset fan end bracket
- Thermoset commutator bracket
