Infitec KSKR6F05 Single Coin Timer with Adjustable Delay - 0.3 - 10.0 Minutes, 230 VAC
Brand:
Mfr. Model #:
KSKR6F05
KR Part #:
TIKR6F05
Weight:
1.25 lbs
(0)Electromechanical relay timer with locally-adjustable delay. Can be changed to accommodate anywhere from 18 seconds to 10 minutes. 230 VAC power.

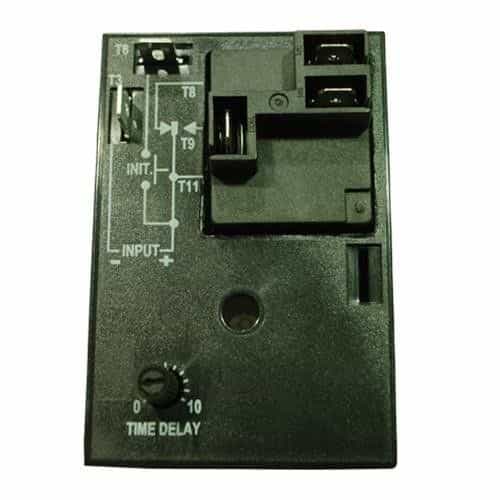

Note: Image is representative of the Series, specific timer may differ slightly.
Product Description
Single Coin Adjustable Delay Timer
The Infitec KSKR6F05 timer has a locally adjustable 18 second to 10 minute delay that begins when the initiate switch is opened. At the end of the time delay, output contacts revert to their original positions. A great choice in your car wash, this timer offers 0.5% repeat accuracy with no first cycle effect. Plus, it's designed to withstand harsh outdoor environments and requires no heatsinking! A 230 VAC electrical current is required. Please see attached specification sheet for wiring diagrams and additional connection information.
Dimensions: 2" x 3" x 1.5"
- 230 VAC
- High power, SPDT non-isolated electromechanical relay
- Locally adjustable delay - 18 second to 10 minute range
- +/- 0.5% accuracy
- +/- 10% setting accuracy
- 50 millisecond maximum reset time
- Fully encapsulated to withstand harsh environments
- Operating temperature range: -4° to 176° F
- Storage temperature: -22° to 185° F
- No heatsinking
- 0.25" quick connect
- Electrical components last up to 10,000 operations
- Mechanical components last up to 10,000,000 operations
