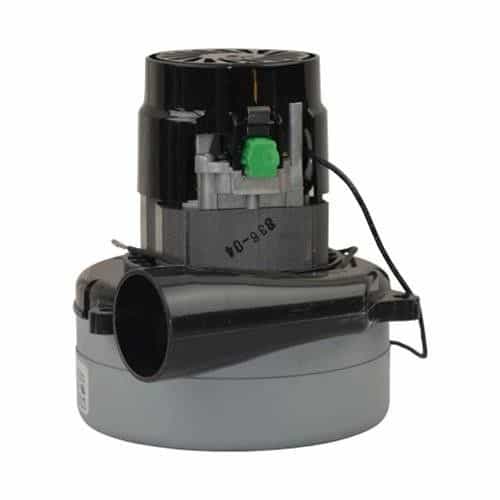

Lamb Ametek 116392-00 2-Stage Vacuum Motor - For Cobra Extractor
Brand:
Mfr. Model #:
116392-00
KR Part #:
VAL6392
Weight:
7.44 lbs
GTIN:
814338021947
(0)A 2-stage, tangential bypass vacuum motor with thermoset mounting brackets. 5.7" diameter, 120 volt AC.
Technical Specifications
Phase: Single
Amps: 8.6
CFM: 97
Max Temperature: 104 degrees F
Voltage AC: 120
Product Description
Tangential Bypass Vacuum Motor - 120V, 2 Stages
The Lamb Ametek 116392-00 Vacuum Motor is ideal for commercial canister/car wash vacuums, utility vacuums, and central vacuum systems. Replace your vac motors to maintain consistent sucking power!
Specifications:
- Motor Type : Series Universal
- Input Voltage : 120 VAC
- Frequency : 50/60 Hz
- Fan Diameter : 5.7"
- No. Fan Stages : 2
- Single phase
- Fan System Style : Bypass
- Air Discharge : Tangential
- Operating Temp : 32-104° Fahrenheit
- Bearing System : Ball
- Frame : Skeleton
- Brush Type : Carbon
- Speed : 1
- Maximum Amps: 8.6 amps
- Maximum Air Watts: 248W
- Motor Mounting Type: Lug
- Motor Mounting Position: All angle
- Overall Height: 6 1/3"
- Mounting Brackets: Thermoset
- Duty: Intermittent
- Average Life: 500 hours
- UL recognized
- Replacement Brushes: 2UV64
- CFM @ 2" Orifice: 97.0
- Vacuum (H2O Sealed): 81.8
