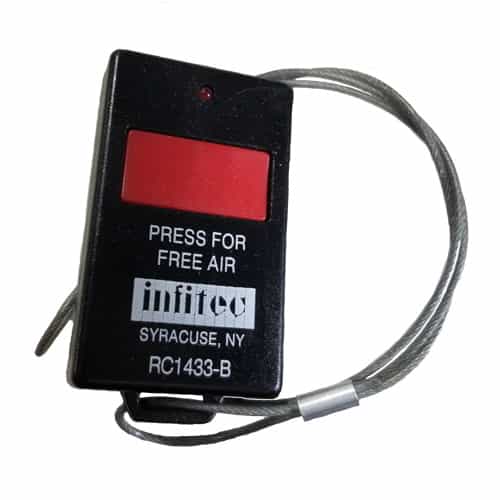

System Complies With FCC Part 15
•
Uses Wireless RF, Not Power Wires To Transmit Signal
•
Range: Up to 1000 Feet (450 Feet Typical)
•
Omnidirectional Antenna for Superior Reception
•
Built-in 5 Minute 'Start Circuit Enable' Timer
•
20 Ampere 1HP @ 125 VAC Relay Output Rating
•
12VDC Vend Counter Output
RECEIVER RC1433-C
1. Input
1.1 Operating Voltage: 120 VAC
1.2 Tolerance: ±15% of Nominal
1.3 Frequency: 50 - 60 Hertz
1.4 RF Operating Frequency: 433MHz
1.5 Range: Up to 1000 Feet (Depending on conditions)
450 Feet Typical
2. Output
2.1 Type: Electromechanical Relay
2.2 Form: SPST, N.O.
2.3 Rating: 20 Amperes, 1HP @ 125 VAC
2.4 Life: Electrical - Full Load - 100,000 Operations
 Mechanical - 10,000,000 Operations
3. Mechanical
3.1 Mounting: End Mounting Ears, #8 Screw Clearance
(2 Places)
3.2 Termination: Wire Leads - 25" Minimum With 1/4" Quick
Connect Terminals (Supplied)
(2) Black, (2) Blue, (1) White
(2) 1/4" Male Quick Connect (Integral to Relay)
3.3 Style: Surface Mount/Encapsulated
3.4 Antenna: ANT1433-A - External Omnidirectional
(Mount to Top of Enclosure)
NOTE: ALL COMPONENTS SHOULD BE MOUNTED AS
FAR AWAY FROM COMPRESSOR AS POSSIBLE
4. Protection
4.1 Transient: Movistor Protected to 10 Joules
4.2 Dielectric Breakdown: 1500 Volts RMS Minimum
5. Environmental
5.1 Operating Temperature: -20°C to +75°C
5.2 Storage Temperature: -30°C to +85°C
5.3 Humidity: 95% Relative, Non-Condensing
