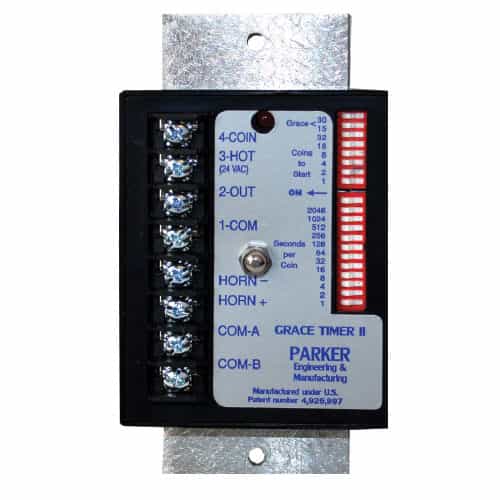

Parker Engineering & Manufacturing Grace Timer II

The Parker Grace Timer 2 is a programmable timer that can control any 24VAC, 3A component (solenoid, relay etc.). When the timer has received the number of coin pulses selected by the dip switches, the solenoid Output will be energized for the amount of time selected by the dip switches times the number of coins to start.

The Grace Timer 2 allows your customers a 15, 30 or 45 second "Grace period" after the time cycle has expired to insert additional coins without putting in a full vend price. It reduces customer frustration and irritation with "running out of time."

Compact and totally encapsulated, the Grace Timer can be mounted in the coin meter box or in the pump room. Designed to work with either electronic or mechanical coin mechanisms.

Features:

• Up to 63 coins to start.
• Up to 4095 Seconds per coin (in 1 second increments)
• Grace enable/disable option
• Grace time of 15, 30 or 45 seconds
• External Grace Beeper output
• Output overload protection LED indicator, dim for power on, bright for cycle active Timer Specifications
• Power Input 24 VAC
• Solenoid Output: 24VAC, 3A continuous, 5A peak. Pulled to Ground through a triac
• Beeper output: 15VDC
• Com Output: RS485
