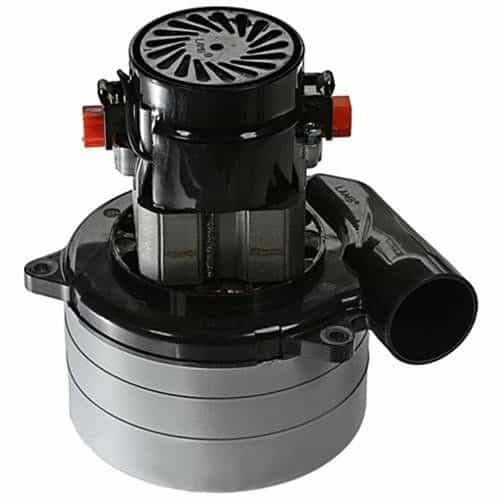

Ametek 117123-00 Tangential Bypass Vacuum Motor - 3 Stage, 5.7 Inch, 240 Volt, 20,400 RPM
Brand:
Mfr. Model #:
117123-00
KR Part #:
VAL7123
Weight:
7.40 lbs
Availability:
4
(0)A new motor for vacuums that require a 240 volt, 5.7 inch, and 3 stage motor. Designed with a tangential discharge system. Creates a maximum speed of 20,400 RPM.
Technical Specifications
RPM: 20400
Voltage AC: 240
Amps: 7
Product Description
3 Stage Vacuum Motor
The Ametek 117123-00 is a 3 stage bypass type vacuum motor for car wash vacuums. Its size profile measures 5.7 inches. Features a tangential discharge system. Motor produces a maximum speed of 20,400 RPM. Compatible with 240 volt electrical connections.Specifications:
- Motor Type: Bypass
- Discharge: Tangential
- Bearings: Double Ball Bearing
- Sealed Vacuum: 137.1 inches
- Maximum Air Watts: 448
- Maximum Air Flow: 95.1 CFM
- Maximum Amps: 7.0
- Motor Speed: 20,400 RPM
- Size: 5.7 Inch
- Stages: 3
- Voltage: 240
- Weight: 6.80 lbs.
