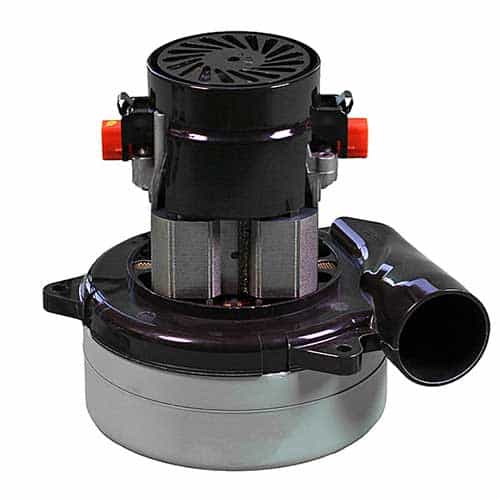

Ametek 5.7 2-Stage 24V Motor
Brand:
Mfr. Model #:
119891-06
KR Part #:
VAL9891-06
Weight:
5.80 lbs
(0)A 5.7-inch frame motor for car wash vacuums. It accepts 24 VAC electrical connections. The motor handles a maximum speed of 15,208 RPM.
Product Description
24 VAC Vacuum Motor
Lamb Ametek 119891-06 is a replacement tangential motor for vacuums at your car wash. The frame measures 5.7 inches in diameter to fit the footprint of the original on your vacuum. It is wired for compatibility with 24 VAC electrical connections. The maximum speed this motor can sustain is 15,208 RPM.
Specifications:
- Manufacturer: Lamb Ametek
- Product Number: 119891-06
- Motor Type: Bypass
- Discharge: Tangential
- Bearings: Double Ball Bearing
- Sealed Vacuum: 40.9 inches
- Maximum Air Watts: 80
- Maximum Air Flow: 66.3 CFM
- Maximum Amps: 15.6
- Motor Speed: 15,208 RPM
- Voltage: 24 VAC
- Frame Size: 5.7"
