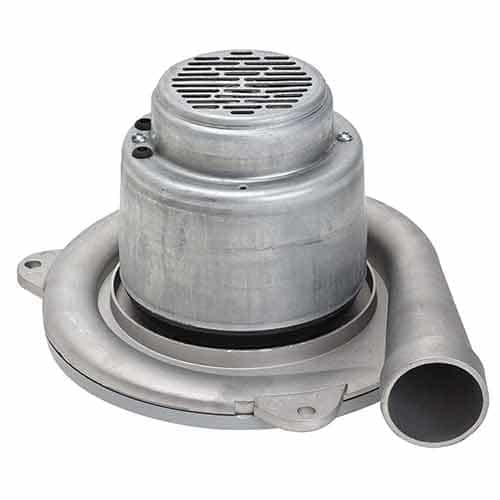

Lamb Ametek 122165-00 Bypass 3-Stage 240V Vacuum Motor - 1 Speed, 171.7 CFM, 8.1 in. Diameter
Brand:
Mfr. Model #:
122165-00
KR Part #:
VAL2165-00
Weight:
8.60 lbs
GTIN:
814338021923
(0)This Ametek 121165-00 motor blower is a brushless, 1-stage, tapered fan system, 8.4 inch, 240 volt high-efficiency motor.
Technical Specifications
Voltage AC: 240
Phase: Single
Amps: 7.8
Watts: 700
Product Description
120V, 171.7 CFM Commercial Vacuum Single Stage Motor
Lamb Ametek is a respected and trusted name in car wash vacuums. The Lamb Ametek 121165-00 motor is a single-stage, single-speed, tangential bypass thru-flow motor with an 8.4" diameter aluminum body. Tapered fan system, with improved sound quality for less operational noise. High-efficiency laminated fans provide increased moisture protection.
Dimensions: 8.4" body diameter x 6" height
- Bypass Motor/Blower
- Blower Stages: 1
- No. of Speeds: 1
- Motor Speed: 34830 RPM
- Motor Enclosure Design: Open
- CFM @ 2-In. Orifice: 171.7
- Vacuum (H2O Sealed): 110.0
- Motor Mounting Type: Lug
- Motor Design: Universal AC/DC
- Motor Mounting Position: All Angle
- Motor Thermal Protection: None
- Ins. Class A
- Double Ball bearings
- Ambient Temperature: 40 Degrees C
- Mounting Brackets: Aluminum
- Duty Intermittent
- Average Life: 1500 hr.
- Nominal Efficiency 45%
