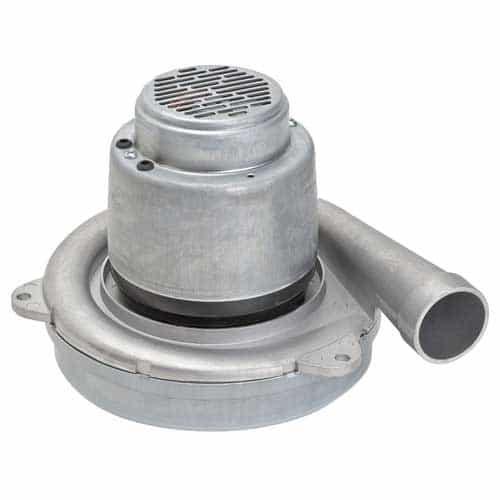

Lamb Ametek 122175-00 Bypass Dual Stage 120V Vacuum Motor - 1 Speed, 8.4 in. Diameter

Brand:
Ametek
Mfr. Model #:
122175-00
KR Part #:
VAL2175
Weight:
9.60 lbs
In Stock
MSRP
$384.09
Now Only!
$244.74
starstarstarstarstar (1)
Aluminum two-stage, one-speed vacuum motor. 8.4" diameter and 7" height.
More Info...

Technical Specifications

Amps: 13.8
CFM: 142 @ 2" Orifice
Voltage AC: 120

Product Description

120V Commercial Vacuum Two Stage Motor

Lamb Ametek is a respected and trusted name in car wash vacuums. The Lamb Ametek 122175-00 motor is a dual-stage,single-speed, tangential bypass thru-flow motor with an 8.4" diameter aluminum body.

Specifications:

  • Tangential bypass discharge
  • 2 blower stage
  • 1 speed
  • Open motor enclosure design
  • CFM @ 2" Orifice: 142
  • 120 volt
  • 60 Hz
  • 13.8 amps
  • Single phase
  • 700 maximum air watts
  • Lug motor mounting type
  • Universal AC/DC motor design
  • All angle motor mounting position
  • Ball bearings
  • 8.4" frame diameter
  • 7" overall height
  • Aluminum mounting brackets
  • Intermittent duty
  • 1500 hour average life
  • 45% nominal efficiency
  • UL recognized
