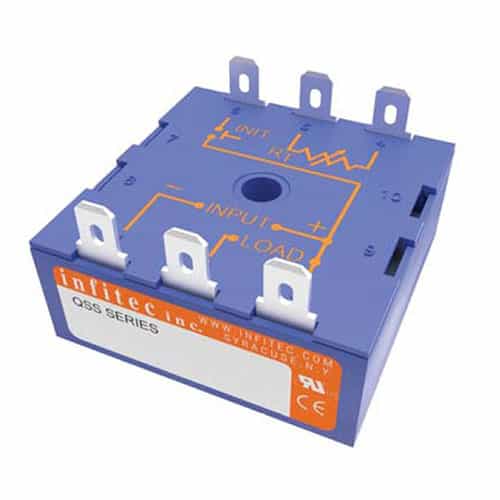

Inline Cube Timer

Utilizes C/MOS Digital Circuitry Power must be directly applied to the input during the time prior to and during priming. Operates at temperatures of 176 degrees Fahrenheit. Features 7 modes of operation.

Specifications:

• Time Delay
• Type: C/MOS Digital Circuitry
• Range: From 0.05 Seconds to 1000 Minutes
• Fixed Delays Available (See Time Delay Chart)
• Repeat Accuracy: ±0.5% Under Fixed Conditions
• Setting Accuracy: ±10%
• Reset Time: 50 Milliseconds Maximum
• Recycle Time: 100 Milliseconds During Timing
• 50 Milliseconds After Timing
• Time Delay vs. Voltage and Temperature: ±2%
• Input
  • Operating Voltage: 120/230 VAC
  • Tolerance: ±20% of Nominal
  • Frequency: 50 - 60 Hertz
• Output
  • Type: Solid State
  • Form: SPST
  • Rating: 1 Amp Steady State, (10 Amp Inrush, 20mA Min.)
  • Life: 100,000,000 Operations Minimum Under Full Load
• Protection
  • Transient: ±1500 Volts for 150 Microseconds
  • Polarity: DC Units Are Reverse Polarity Protected
  • Dielectric Breakdown: 1500 Volts RMS Minimum
• Mechanical
  • Mounting: One #8 or #10 Screw
  • Termination: 1/4" Quick Connect Terminals
  • Style: Surface Mount Encapsulated
• Environmental
  • Operating Temperature: -4°F to 176°F
  • Storage Temperature: -22°F to 185°F
  • Humidity: 95% Relative Non-Condensing

Features:

• C/MOS Digital Circuitry
• Time Delays to 1000 Minutes
• No First Cycle Effect
• Fully Solid State and Encapsulated
• 0.5% Repeat Accuracy
• Seven Different Modes of Operation
• Output Rated at 1 Ampere Continuous, 10 Amperes Inrush
• Fixed, Local, or Externally Adjustable Time Delays
• Small Size
• UL/cUL Recognized
