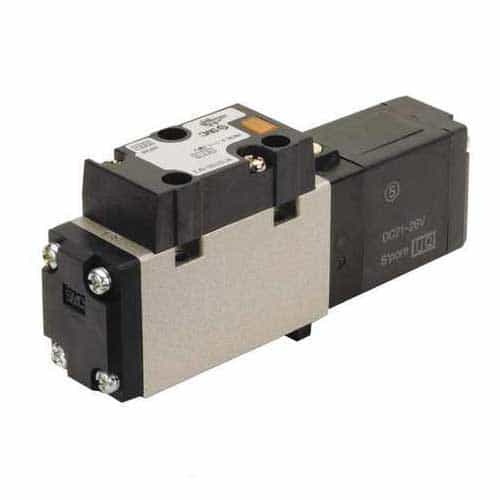

SMC Pneumatics VFS2100-5FZ Pilot Operated 24VDC Solenoid Air Control Valve - 5 Way/2 Position
Brand:
Mfr. Model #:
VFS2100-5FZ
KR Part #:
SMC2100-5FZ
Weight:
0.40 lbs
(0)Two-position 24VDC solenoid air control valve with internal pilot and plug-in electrical components. Used in car wash applications. Compatible with 24 volt electrical connections.
Prop 65
Technical Specifications
Max PSI: 145
Max Temperature: 140 degrees F
Voltage DC: 24
Product Description
2-Position/5-Port Pneumatic Solenoid Valve
The SMC Pneumatics VFS2100-5FZ solenoid valve is a 24VDC internally-driven pilot valve for air, fluid, or inert gas applications. Uses include car wash systems, air compressors, vacuums, air blowers, and dust collection sytems. This two-position style valve has five ports, is base mounted, and has plug-in electrical connections.
Dimensions: 2" W x 4 1/2" L x 1 1/2" H
Specifications and Features:
- Ways and Positions: 5-Way/2-Position
- Voltage: 24VDC
- Valve Actuator/Return: Solenoid/Spring
- Maximum CFM of Valves: 0.78
- Operational Pressure Range: 15 to 145 psi
- Body Style: Base Mounted
- Pilot Port: Internal
- Pilot Pressure: 15 psi
- Port Size: 1/4" x 1/8" NPT
- Coefficient of Volume: 0.55
- Electrical Connections: Plug-in
- Shifting Technology: Solenoid
- Power Consumption: 2.04W
- Ambient Temperature Range: 14 degrees to 140 degrees Fahrenheit
- Standards: Meets CE, CSA
- VFS Series
