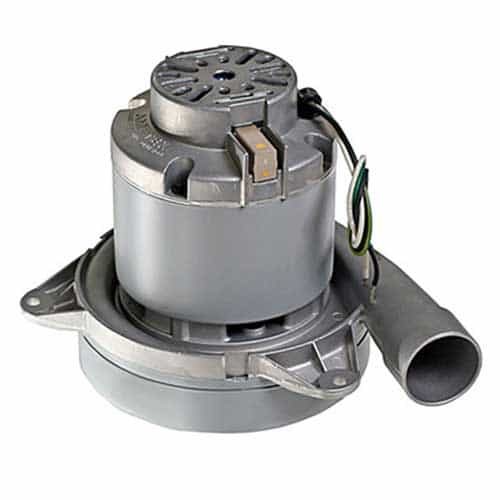

Lamb-Ametek 117478-12 120V Two Stage 7.2 in. Vacuum Motor - 13.5 Amps
Brand:
Mfr. Model #:
117478-12
KR Part #:
VAL7478-12
Weight:
8.00 lbs
(0)Two stage replacement motor for car wash vacuums. Features a tangential bypass discharge system. Aluminum fan-end bracket dampens vibrations.
DROP SHIP
Technical Specifications
Amps: 13.5
CFM: 110.8
RPM: 22550
Voltage AC: 120
Product Description
Car Wash and Central Vacuum Motor
Get your commercial vacuum back to peak performance with this Lamb-Ametek 117478-12 replacement motor. It is a two-stage, 120 volt, 13.5 amp motor measuring 7.2 inches in diameter. Boasts dual ball bearings, a tangential bypass discharge, and an aluminum fan-end bracket to dampen vibrations.
Specifications:
- Two stage
- 120 volts
- 13.5 maximum amps
- 7.2" diameter frame
- 110.8 CFM maximum air flow
- 549 maximum air wats
- 22,550 RPM maximum motor speed
- 120" sealed vacuum
- Single speed
- 10mm shaft and bearing system
- Epoxy painted fan case
- Aluminum fan end bracket
- Aluminum commutator bracket
- UL Listed
- CSA certified
Compatible Brush:
- 33450-7
