Solid State Module

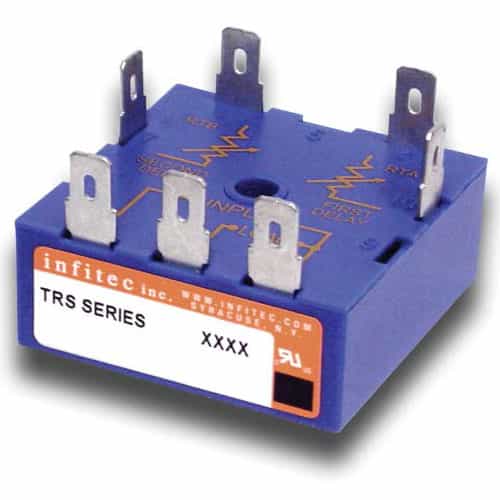

The Infitec TRS5114560 TRS series module is a digital encapsulated variety with time delay capability. Enjoy the convenience of fixed, independent local, or external timing adjustments and time delays up to 1000 minutes. This unit has no first cycle effect and achieves 0.5% repeat accuracy. Plus, it's fully solid state, encapsulated, and UL recognized!

Dimensions: 2" x 2" x 1.35"

• 120 VAC

• C/MOS digital circuitry
• Fixed, independent local, or external timing adjustment
• Minimum time delay: 0.05 seconds
• Maximum time delay: 1000 minutes

• Solid state
• Encapsulated
• No first cycle effect
• Low cost mounting and termination
• 1 amp continuous output
• Maximum operating temperature: 176° F
• Maximum operating humidity: 95%
• Infitec item #TRS5114560
• Weight: 1 lb.
