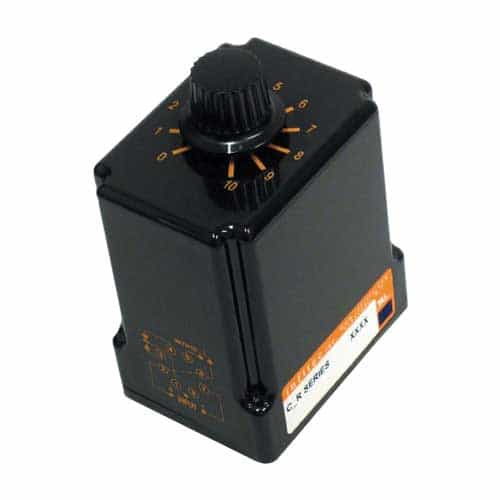

Infitec CSR1502C Time Delay with Adjustable Knob - 120V, 1-60 Seconds
Brand:
Mfr. Model #:
CSR1502C
KR Part #:
RL0188
Weight:
0.65 lbs
(0)120 volt AC power time delay with an adjustable knob. Delay range from 1-60 seconds. No first cycle effect and has .5% repeat accuracy.
Technical Specifications
Amps: 10
Voltage AC: 120
Product Description
Plug-In Time Delay Relay
This Infitec CSR1502C Time Delay operates like a regular relay that opens and closes circuits, but adds the extra functionality of delaying the closing of a circuit from one to sixty seconds. This is useful when you want to flip one switch to turn on multiple circuits without tripping a breaker or blowing a fuse. Useful for motors, vacuums, lights, conveyors, and other electric car wash equipment.
The Infitec CSR1502C CSR Series Time Delay has convenient knob adjustment and an octal plug with 8 pins. This 120 volt time delay has a ten amp rating an single shot operation mode.
Specifications:
- 120 volt AC
- 8-pin octal plug-in
- Knob adjustment
- 1 to 60 second time delay range
- 10A rating
- Single shot operation mode
- Weight: .65 lbs.
- See data sheet (Manuals tab) for advanced specifications
Features:
- C/MOS digital circuitry
- No first cycle effect
- .5% repeat accuracy
- 2% stability over voltage and temperature
- UL/cUL recognized
