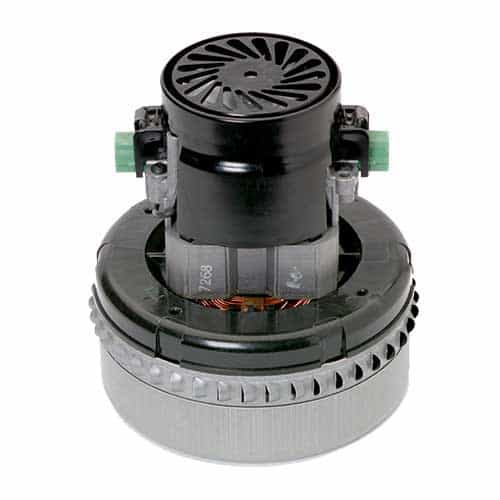

Ametek 117944-00 Three Stage Vacuum Motor - 240VAC, 5.7 in.
Brand:
Mfr. Model #:
117944-00
KR Part #:
VAL7944
Weight:
5.00 lbs
(0)New vacuum motor with a 5.7" diameter. Tangential bypass vac motor with an open motor enclosure design. 2 stage, 240VAC, 7.7 amps.
DROP SHIP
Technical Specifications
Amps: 7.7
Voltage AC: 240
Product Description
5.7" Diameter Vacuum Motor
The Ametek 117944-00 motor measures 5.7" in diameter and operates at 240 volts and a maximum of 7.7 amps. This peripheral bypass motor features a double ball bearing system and a skeleton frame design. Replacing a failing or damaged motor is a cheaper option than purchasing a new vacuum unit! Get your car wash vacuum back to full functionality!
Specifications:
- 3 stage
- 5.7" diameter
- 240 volt AC
- 50/60 Hz
- Peripheral bypass motor
- ACUSTEK low-noise peripheral bypass discharge
- Double ball bearings
- 138.1" sealed vacuum
- 444 maximum air watts
- 100.3 CFN maximum air flow
- 20,200 RPM motor speed
- Aluminum fan end bracket
- Aluminum commutator bracket
- Aluminum fan end bracket designed to dampen vibration and improve durability
- Skeleton frame design
- 10mm shaft and bearing system
- UL recognized
- Weight: 5 lbs.
Replacement Brushes:
- 33423-12
Design Application:
- Commercial and residential central cleaning systems
- Car wash vacuum and blower systems
- Equipment operating in environments requiring separation of working air from motor ventilating air
- Designed to handle clean, dry, filtered air only
