Pyramid APEX7400-DB4 Downstack 1-20 Dollar 24V MDB Validator
Brand:
Mfr. Model #:
APEX7400-DB4
KR Part #:
PTAPEX7400-DB4
Weight:
3.30 lbs
(0)Pyramid bill validator for change machines, car wash, etc. Validates bills to reduce counterfeit money. 24 volt, $1-20, Downstack.

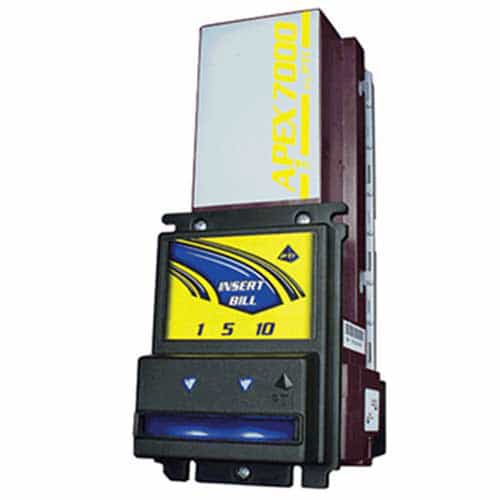

NOTE: Image shown to illustrate Apex 7000 Series line of validators, but may not be the exact model sold on this page. Please review all specifications carefully.
NOTE: Image shown to illustrate Apex 7000 Series line of validators, but may not be the exact model sold on this page. Please review all specifications carefully.
DROP SHIP
Product Description
Apex 7000 Series 24V Pyramid Bill Acceptor
The Pyramid APEX7400-DB4 is a 24 volt downstacking bill validator from the Apex 7000 Series. This validator is an MDB type with a standard bezel and accepts $1, $5, $10, $20 US Dollars in a cash box that holds up to 500 bills. Dip switches make this model easier than ever to use and process rapidly.Features:
- Bill entry has lighted arrows for higher visibility.
- High rating to detect counterfeit bills
- PC Flash updates
- Dual stage optical anti-stringing tech
- Self calibrates on its own, no user calibration necessary.
- No Mag. Head
- Standard Bezel
- Downstacker
- 500 Bill Cash Box
- MDB Option
- Accepts $1,$5,$10,$20 USD
- Operating Voltage: 24 volt DC
- Operating Currents: Idle: 180 mA Accepting: 500 mA Stalled: 1.50 A.
- Operating Temperature: .0C - 60C, 90 % non-condensing humidity.
- Acceptance Rate: Greater than 95%, including second time insertion of a rejected bill.
- Acceptance Speed: Approx. 20 bills per minute.
- Sensor Array: .8 Optical Sensors, one Magnetic Head. Mag. Head is standard on $50, $100 acceptor only.
- Bills Accepted: Up to 12 bills in all four directions.
